125A Electrical Panel Upgrade

This project involved upgrading the home's existing electrical panel to a new 125-amp Square D main service panel, connected to an existing underground utility service. The goal was to improve safety, reliability, and system performance within the limits of the existing utility infrastructure.

California

Location

Panel Upgrade

Services

Apr 2026

Completed

Project Overview

The homeowner initially requested a 200-amp service upgrade. However, after coordination with the utility company and evaluation of the existing underground service conduit, it was determined that the current infrastructure could not accommodate the conductors required for a 200-amp upgrade.

To maximize available capacity without extensive utility-side modifications, our team installed a new 125-amp Square D main service panel designed to safely support the home’s electrical demand.

PROJECT HIGHLIGHTS

125A Main Panel Upgrade

Installed a new Square D 125-amp main service panel for improved safety and performance.

Underground Service Compatibility

Worked within existing underground utility limitations to avoid major trenching or service replacement.

Grounding & Bonding Upgrades

Updated grounding and bonding system to meet current electrical code requirements.

Full Permit & Utility Coordination

Coordinated with utility provider and completed all required permits and inspections.

200A Upgrade Not Feasible Due to Utility Limitations

Although a 200-amp upgrade was initially requested, the existing underground service conduit was undersized for the larger conductors required. This prevented approval from the utility provider for a full service upgrade.

Undersized Service Conduit

The existing underground conduit could not accommodate conductors required for 200-amp service.

Utility Approval Restrictions

Utility provider did not approve a 200-amp upgrade without full infrastructure replacement.

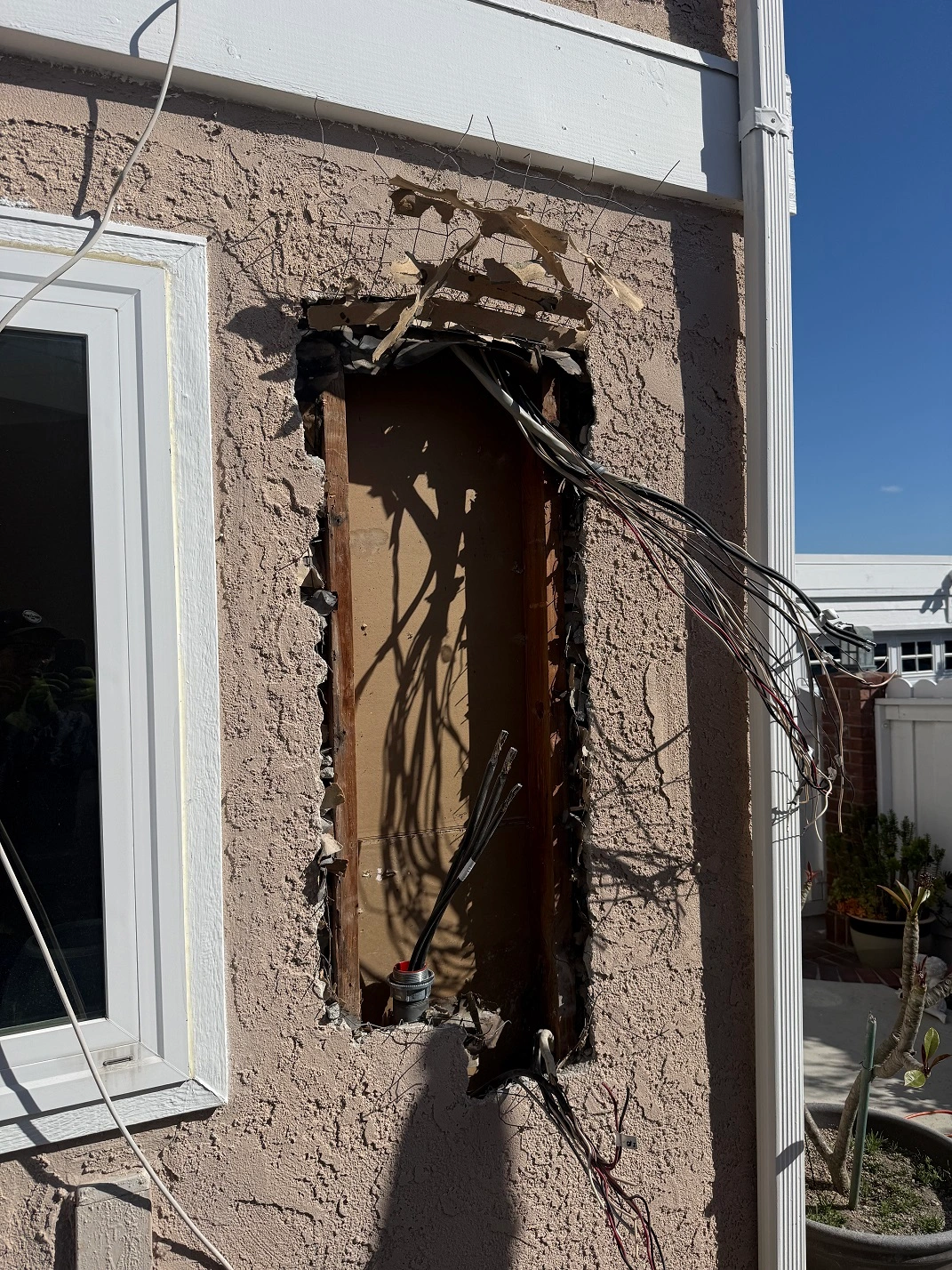

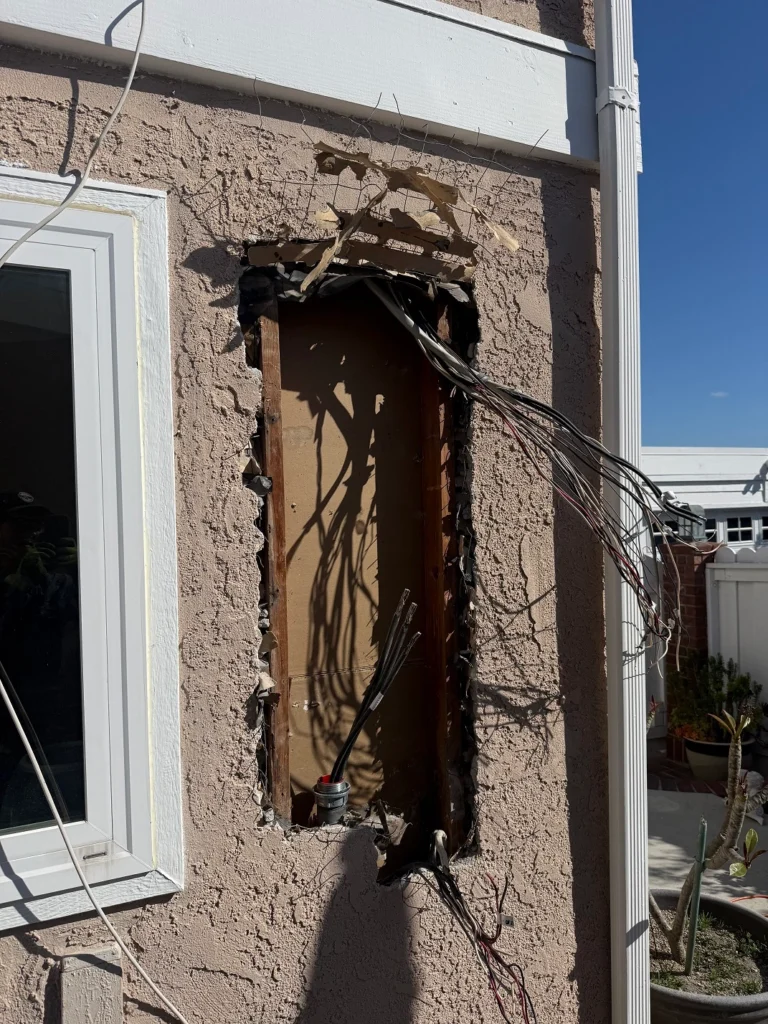

Existing Panel Limitations

The original panel was outdated and required replacement for safety and compliance.

Load Verification Required

Electrical load calculations were necessary to confirm safe operation at a reduced service size.

Optimized 125A Service Upgrade

Our team installed a new 125-amp Square D main service panel, maximizing available capacity within the constraints of the existing underground utility infrastructure while maintaining full code compliance.

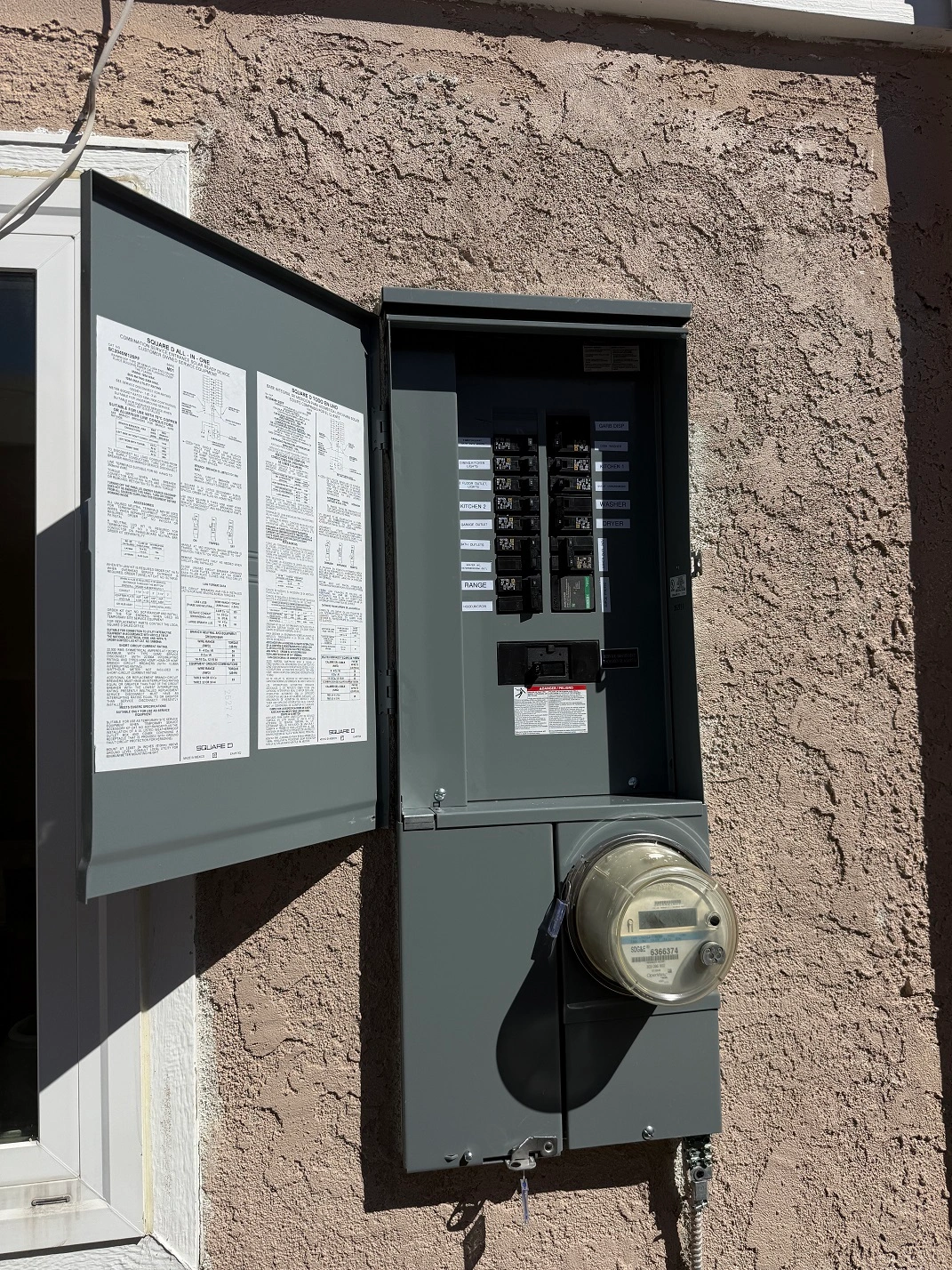

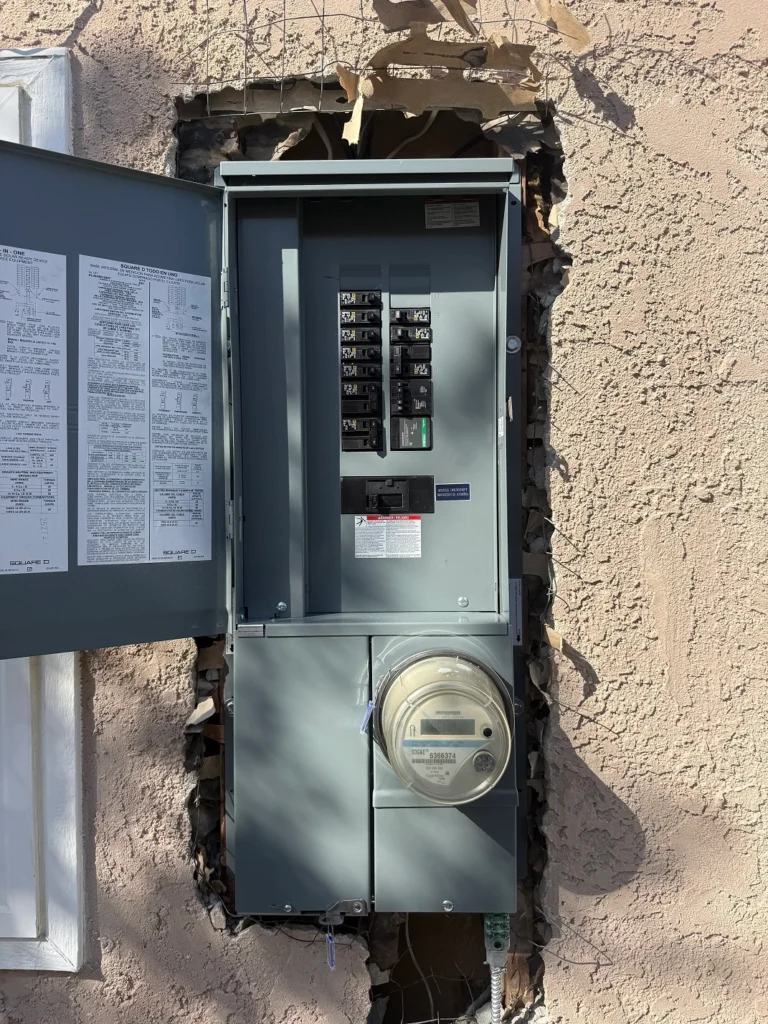

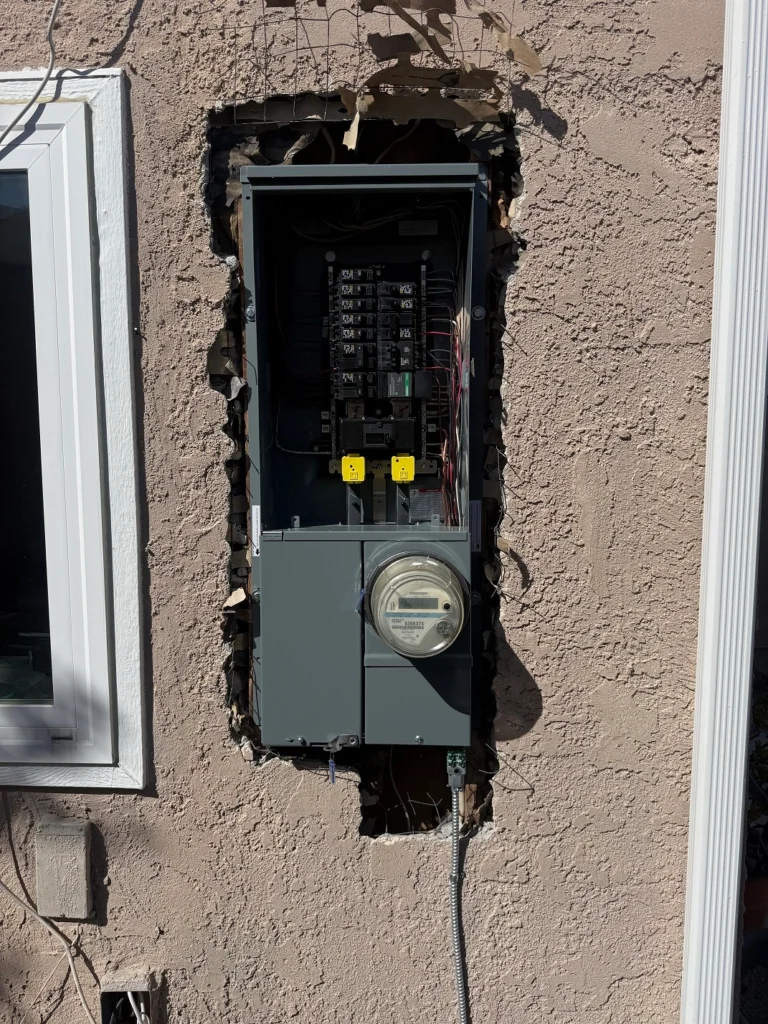

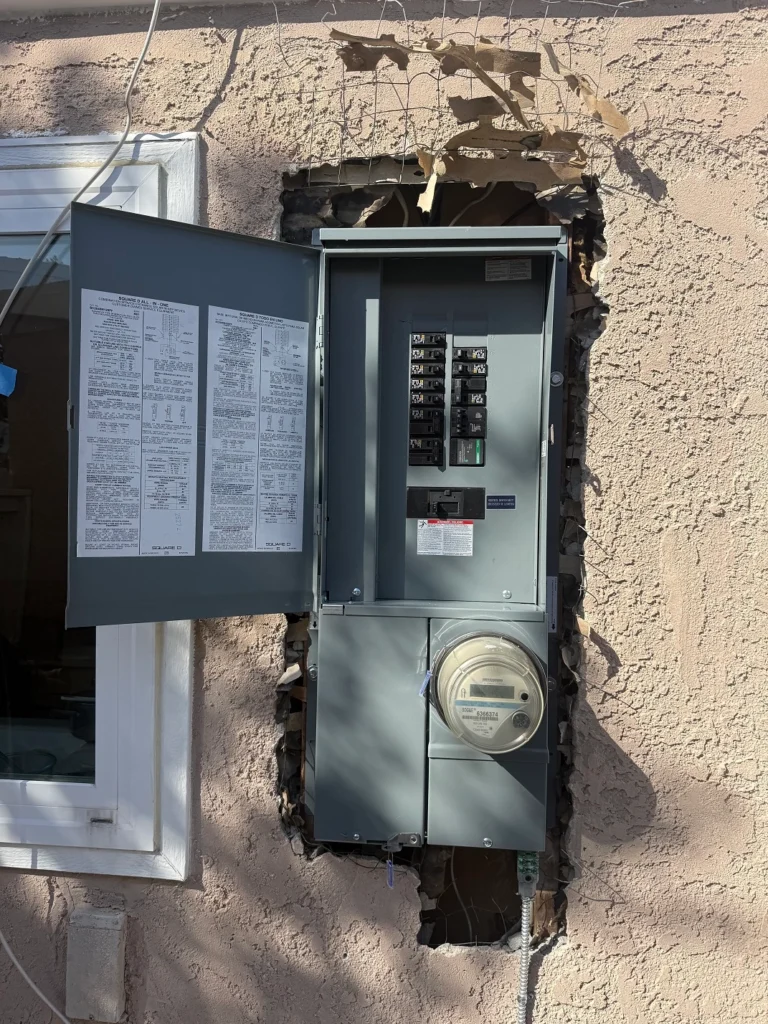

New Square D 125A Panel

Installed a modern main service panel with updated breakers and improved safety features.

Electrical Load Calculation

Verified that the upgraded 125-amp service adequately supports the home's electrical demand.

Grounding & Bonding

Upgraded grounding system to meet current NEC requirements.

Safety Updates

Re-labeled and organized all circuits for improved safety and maintenance.

Scope of Work

Permits & Inspections

Our company coordinated directly with the utility provider and local building department to secure all necessary permits and approvals. Despite limitations of the underground service infrastructure, the project passed all required inspections successfully.

The Result

The homeowner now has a safe, modern, and fully code-compliant 125-amp electrical system. While the service could not be upgraded to 200 amps due to utility constraints, the installation maximizes available capacity and ensures reliable electrical performance within the limits of the existing underground infrastructure.
